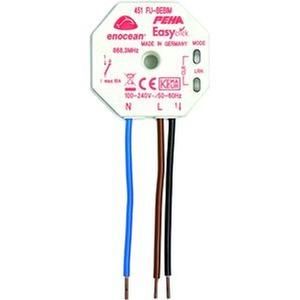

The bidirectional Easyclick receiver not only receives the radio signals, but also sends back its status each time the status changes. Real ON/OFF switching states can be visualized on the hand-held transmitter D 450 FU-HS 128, for example. The Easyclick receiver is used to switch lighting and other electrical consumers. Various functions and parameters can be selected: - Two-button operation ON/OFF (standard function) - One-button operation ON/OFF (toggle) - Button operation (impulse) - Hotel card switch with selectable run-on time - Staircase light with selectable running time and switch-off warning - Automatic OFF after selectable running time - Fan function with delayed ON and with selectable run-on time - Save and call up 4 light scenes at the touch of a button (one light scene per button) - Window handle and window contact, visualization also parallel to the switching outputs - Motion detector and light sensor - An individual function can be defined for each of the max. 32 transmitters that have been taught in. - Independently of the set functions, integrated repeater functions (1-level/2-level) can be switched on depending on the project. - When teaching in e.g. B. Window contacts, window handles and motion detectors, these are already assigned to the corresponding function/parameter. Technical specifications: Own consumption: < 0.5 W (bistable relay) Transmission frequency: 868.3 MHz Power supply: 100-240 V~/50-60 Hz Neutral conductor: required Ambient temperature: -20 °C to +40 °C Storage temperature: -40 °C to +85 °C Connecting wires: 1.5 mm blue, black, brown Housing height: 28 mm Housing: with screw hook hole Protection class: IP 20 Approvals: KEMA / KEUR Load types 230 V~ (110 V~) Incandescent lamps 2500 W (1250 W) HV halogen lamps 1200 W (600 W) Motor load 600 VA (300 VA) EVG load 3 pieces (3 pieces) The number depends on the type and manufacturer. Please note the data sheet of the device! Additional
