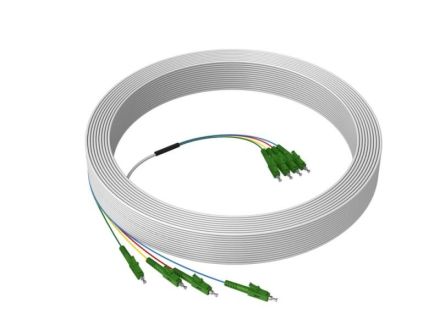

HomeWay HW-TOAK4V11L020 V11 2mm/20m Install Kit

In stock
SKU: 917089
€156.38
Into a basketIn the basketGo

Overview

TOA Install Kit V11, 2.2mm single-mode fiber optic cable, 4 fibers G.657.A2, suitable for blowing in, pulling in and pushing in, pre-assembled side 1 with 4 x LC/APC connectors, side 2 with 4 x LC/APC special version, for installing the homeway network level 4, splice-free connection between wall distribution box TOA L with one.fiber distribution field in the media distributor, wound on a spool, length 20 m

Property Value
Outer diameter approx.: 2.2 mm
Sheath color: white
Fiber type: Singlemode 9/125
Core type: Full loader
Number of fibers per core: 4
With strain relief: yes
With rodent protection: no
Reinforcement: no
Sheath material: others
Cable metal-free: yes
Low smoke according to EN 61034-2: yes
Chemically resistant: no
Blow-in: yes
Number of fibers: 4
Halogen-free according to EN 60754-1/2: yes
Oil-resistant according to EN 60811-404: no
Category: OS1
Specification of jacket material: other
Cable longitudinally watertight: yes
Cable transversely watertight: yes
Fire behavior class according to EN 13501-6: Cca
Smoke development class according to EN 13501-6: without
Drip behaviour class according to EN 13501-6: without
Acid development class according to EN 13501-6: without
UV-resistant: yes
Min. permissible bending radius, stationary use/permanently installed: 22 mm
Laying in the ground: no

Characteristics

Sheath materialOther
Outer diameter approx.2.2 mm
Oil-resistant according to EN 60811-404No
CategoryOS1
HABV11 2mm/20m
ManufacturerHomeWay
HANHW-TOAK4V11L020
GTIN4250679760118
Coat colorWhite
With strain reliefYes
UV-resistantYes
