HomeWay OA V2 4mm/100m Installation Kit

In stock

SKU: 900012

Price on request

€206.30

€0

Overview

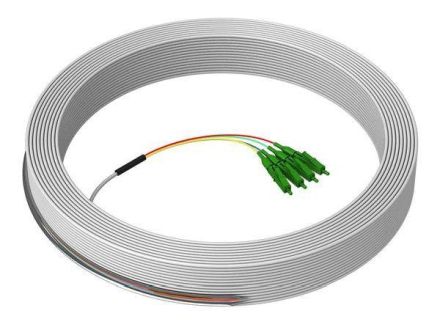

OA Install Kit V2, 4mm singlemode fiber optic cable, 4 fibers G.657.A, assembled side 1 with 4 x LC/APC connectors, side 2 unassembled, without pull-in protection, wound on a spool, length 100 m

Property	Value
Fiber number:	4
Sheath color:	white
Outer Ø:	4 mm
Fiber type:	Singlemode 9/125
Core type:	Full-loader
Number of fibers per core:	4
With strain relief:	yes
With rodent protection:	no
Sheath material:	other
Cable metal-free:	yes
Chemically resistant:	no
Blow-in:	no
Oil-resistant in accordance with EN IEC 60811-404:	no
Category:	OS1
Specification sheath material:	other
Cable longitudinally watertight:	yes
Cable transversely watertight:	yes
Fire behavior according to EN 13501-6: Class:	Cca
Fire behavior according to EN 13501-6: Smoke development:	without
Fire behavior according to EN 13501-6: Drip behaviour:	none
Fire behaviour according to EN 13501-6: Acid development:	none
UV-resistant:	yes
Min. permissible bending radius, stationary use/permanently installed:	10 mm
Suitable for laying in the ground:	no
Max. tensile strength during installation:	0.3 kN
Cable geometry:	round
