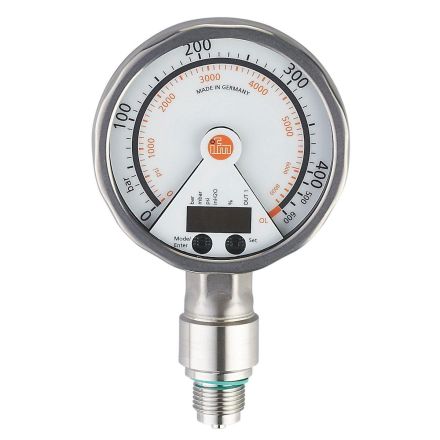

ifm electronic PG2452 with analogue display 0...100 bar Electronic pressure switch

In stock
SKU: 629118
€619.92
Into a basketIn the basketGo

Overview

Pressure sensors, electronic pressure sensor, with analog display, measuring range: 0...100 bar / 0...1449 psi, process connection: G, 4-wire, DC PNP/NPN, operating voltage: 18...32 V DC, current consumption: 70 mA, 1 x normally open / normally closed programmable + 1 x analog (4...20 / 20...4 mA, scalable), 1 x no / nc progr. + 1 x analog (4...20 / 20...4 mA, scalable) plug connection, M12 plug connection, analog display 0...350 rotatable, resolution 0.25%, pointer not visible when de-energized, housing material: V4A (1.4404) PA FPM (Viton) PTFE viewing window: 4 mm safety laminated glass, materials in contact with the medium: ceramic (Al2O3) FPM V4A / 316L / 1.4404

Property Value
Max. Test pressure: 100 bar
Medium temperature: -25 to 80 °C
Protection class (IP): IP67

Characteristics

HABPG2452 with analog display 0...100 bar
ManufacturerIfm electronic
HANPG2452
GTIN4021179257510
IP protection)IP67
