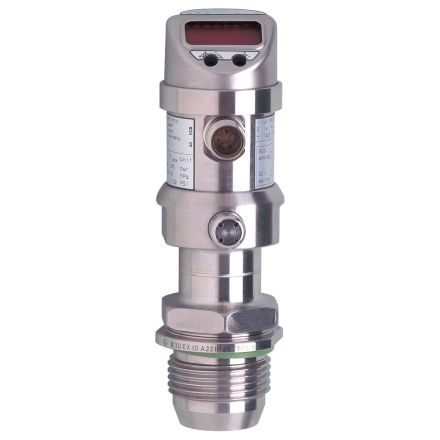

ifm electronic PI003A Combi1,00 25,00 bar,14,4 362,7 psi,0,100 pressure sensor

In stock
SKU: 626120
€1,026.36
Into a basketIn the basketGo

Overview

Pressure sensors, combi pressure sensor, measuring range: -1.00...25.00 bar / -14.4...362.7 psi / -0.100...2.500 MPa, process connection: G 1 A sealing cone, 4-wire, DC PNP/NPN, operating voltage: 18...32 V DC, current consumption: 50 mA, 1 x normally open / normally closed programmable + 1 x analog (I / U, scalable 1:4), 1 x no / nc progr. + 1 x analog (I / U, scalable 1:4) plug connection, M12 plug connection, Rotatable housing 350 , 0-point and span adjustable , Function programmable , ATEX approval , Group II, Category 3D / 3G , G 1 A sealing cone, Housing material: V4A (1.4404) PC (Makrolon) PBT (Pocan) PEI FPM (Viton) PTFE, Materials in contact with the medium: Ceramic (99.9 % Al2O3) V4A / 316L / 1.4435 V4A / 316L / 1.4404 Surface quality: Ra < 0.4 / Rz 4 PTFE EPDM

Characteristics

HABCombi1.00 25.00 bar,14.4 362.7 psi,0.100
ManufacturerIfm electronic
HANPI003A
GTIN4021179244206
ifm electronic PI003A Combi1,00 25,00 bar,14,4 362,7 psi,0,100 pressure sensor
ifm electronic PI003A Combi1,00 25,00 bar,14,4 362,7 psi,0,100 pressure sensor
€1,026.36
Into a basketIn the basketGo
