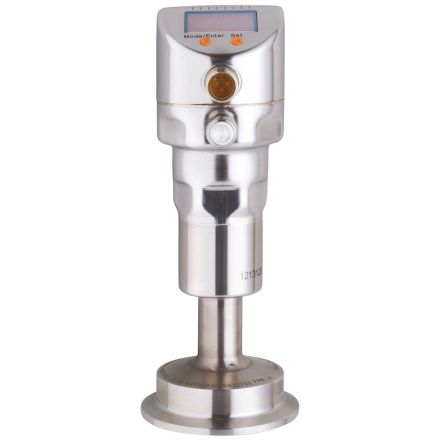

ifm electronic PI2306 Combi0.124 2.500 bar,1.8 36.27 psi Clamp pressure sensor

In stock
SKU: 626194
€1,066.05
Into a basketIn the basketGo

Overview

Pressure sensors, combi pressure sensor, measuring range: -0.124...2.500 bar / -1.8...36.27 psi, process connection: clamp DN 51 / 2, 4-wire, 2-wire DC / 3-wire DC PNP/NPN, operating voltage: 20...32 V DC (2L) / 18...32 V DC (3L), current consumption: 3.6...21 (2L) / 45 (3L) mA, 1 x normally open / normally closed programmable + 1 x normally open / normally closed programmable or 1 x analog (4...20 / 20...4 mA, scalable), 1 x no / nc progr. + 1 x no / nc progr. or 1 x analog (4...20 / 20...4 mA, scalable) plug connection, M12 plug connection, function programmable, membrane diameter: 47.5 mm, filling liquid for pressure transmission: medical white oil (food-grade, FDA compliant), housing material: V4A (1.4404) V4A (1.4435) PBT PEI PFA, materials in contact with the medium: V4A (1.4435)

Characteristics

HABCombi0.124 2,500 bar,1.8 36.27 psi Clamp
ManufacturerIfm electronic
HANPI2306
GTIN4021179276962
ifm electronic PI2306 Combi0.124 2.500 bar,1.8 36.27 psi Clamp pressure sensor
ifm electronic PI2306 Combi0.124 2.500 bar,1.8 36.27 psi Clamp pressure sensor
