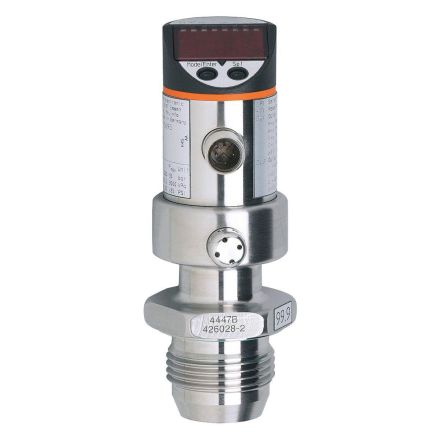

ifm electronic PIM693 Pump diagnostics and pressure monitoring1.00 Combined sensor

Pressure sensors, combination sensor for pump diagnostics and pressure monitoring, measuring range: -1.00...25.00 bar / -14.4...362.7 psi / -0.100...2.500 MPa, process connection: G 1 A sealing cone, 4-wire, DC PNP, operating voltage: 18...32 V DC, current consumption: 50 mA, 1 x normally open / normally closed programmable + 1 x normally open / normally closed programmable or 1 x analog (4...20 / 20...4 mA, scalable), 1 x no / nc progr. + 1 x no / nc progr. or 1 x analog (4...20 / 20...4 mA, scalable) plug connection, M12 plug connection, dead space-free, rotatable housing 350, 0-point and span adjustable, function programmable, G 1 A sealing cone, housing material: V4A / 316L / 1.4404 PC (Makrolon) PBT (Pocan) PEI FPM (Viton) PTFE, materials in contact with the medium: ceramic (99.9% Al2O3) PTFE V4A / 316L / 1.4435 surface quality: Ra < 0.4 / Rz 4
