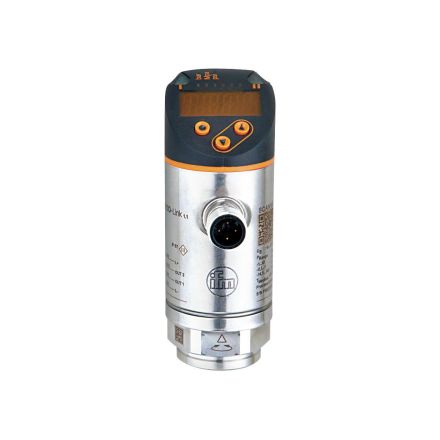

Pressure sensors, Electronic pressure sensor, Measuring range: -1...10 bar / -14.5...145 psi / -0.1...1 MPa, Process connection: GI, 4-wire, DC PNP, Operating voltage: 18...30 V DC, Current consumption: 35 mA, NO / NC programmable, 4...20 mA or 0...10 V, no / nc progr., 4...20 mA or 0...10 V, 2 outputs, OUT1 = switching output, OUT2 = analog output, M12 plug connection, M12 plug connection, Function programmable, Measuring element: ceramic capacitive pressure measuring cell, Housing material: 1.4404 (V4A / 316L) PBT+PC-GF 30 PBT-GF 20 PC, Materials in contact with the medium: 1.4404 (V4A / 316L) Al2O3 (ceramic) FKM
