INDEXA 29298 AK208 connection box for various cameras

In stock

SKU: 960308

Price on request

€40.22

€0

Overview

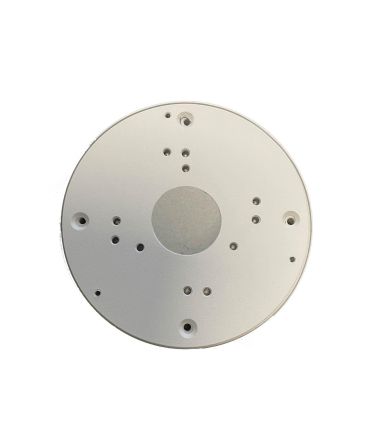

Connection box for cameras. Makes installation easier and protects the connections. Suitable for NWB6230F, NWB6431F, NWB6434M, NWB6435M, NWD6432F and NWD6433M. An ORBIT power supply unit can also be installed in the WR100B, WR120B, GK120B4G, AC92 and DW700K cameras and in the IR24 and IR26 infrared emitters. Can be mounted on the MH151 mast bracket. PG screw connections on the left side and to the rear. Color: signal white similar to RAL 9003. Dimensions: D 121 x 45mm.

Property	Value
Protection class (IP):	IP66
Weight:	0.37
Weight unit:	KG
Mounting type:	Wall/ceiling mounting
Color:	white
Halogen-free:	yes
Depth:	45 mm
Shape:	round
Surface:	painted
Diameter:	121 mm
Equipment:	without
Material:	Aluminum
Number of entries:	2
Cover fastening:	screwed
Weatherproof:	yes
Introduction from the rear:	yes
For Ex-Zone Gas:	without
Type of housing feedthrough:	Thread
For Ex-Zone Dust:	without
Cover design:	other
Design:	Mounting box
Short description:	Connection box for WR100B, WR120B, NWB64xxm, NWD64xx cameras and IR26/28, round, white

Characteristics

Manufacturer

HAN29298

GTIN4015162292985

VersionMounting box

Cover designOther

Diameter121 mm

Color

ShapeAround

Weight0,37

Weight unit kg

Halogen freeYes

Short descriptionJunction box for WR100B, WR120B, NWB64xxm, NWD64xx cameras and IR26/28, round, white

Mounting typeWall/ceiling mounting

SurfacePainted

IP protection)IP66

Depth45 mm

MaterialAluminum
