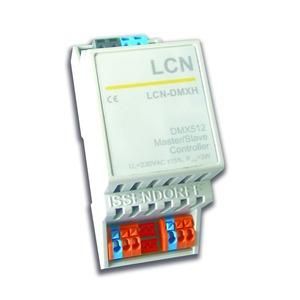

The DMX controller LCN-DMXH controls 4 DMX channels, e.g. RGBW ballasts. It is mounted on the top hat rail and can be operated with LCN modules from firmware 1702.. (Feb. 2013). The LCN module supplies the brightness values of its 4 electronic outputs to the LCN-DMXH via the I connection. The LCN-DMXH converts these values to the corresponding freely configurable DMX channels. Thanks to its DMX input, the DMXH can be looped into an existing DMX line. It will then use its 4 dimming values at 4 (adjustable) DMX addresses. In this way, it is also possible to connect several LCN-DMXH in series to control 8, 12, ... channels.
