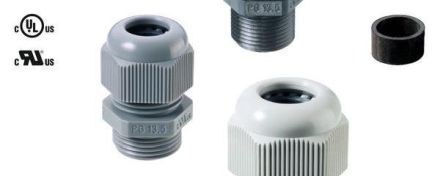

Jacob 50.016 PA7035 50.016PA/7035 PG16 Iso cable gland

In stock

SKU: 907600

Price on request

€0.55

€0

Overview

integrated strain relief, large sealing and clamping area, easy to install, RAL7035, connection thread standard length, cable gland Pg plastic

Property	Value
Wrench size:	27 mm
Thread pitch:	1.41 mm
Nominal thread size metric/PG:	16
Suitable for cable diameters:	10 to 14 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	no
Thread length:	10 mm
Thread type:	PG
Design:	straight
Material:	Plastic
With strain relief:	yes
Surface:	untreated
Type of Seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	7035
Material quality:	Polyamide (PA)
Glass fibre reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
