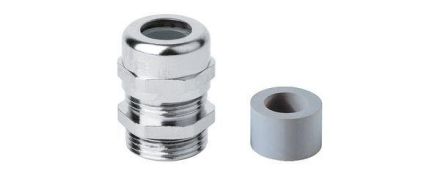

Jacob 50.016 R IP cable gland MS PG16

In stock

SKU: 907856

Price on request

€4.73

€0

Overview

Reducing sealing ring for small cables, integrated strain relief, anti-twist protection, large sealing and clamping range, easy to install, connection thread standard length, cable gland Pg brass

Property	Value
Wrench size:	24 mm
Thread pitch:	1.41 mm
Nominal thread size metric/PG:	16
Suitable for cable diameters:	7 to 12 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	no
Thread length:	6.5 mm
Thread type:	PG
Design:	straight
Color:	other
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	sealing ring
Impact-resistant:	yes
Bending protection:	no
Material quality:	brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no

Characteristics

Impact resistantYes

Explosion-tested versionNo

Nominal thread size metric/PG16

Fiberglass reinforcedNo

ShieldedNo

Suitable for cable diameter7 to 12 mm

Wrench size24 mm

HAB50,016 Rs

Minimal order50 pcs

Manufacturer

HAN50.016 R

GTIN4024092023248

VersionStraight

EMC versionNo

Operating temperature-20 to 100 °C

Color

Thread typePG

Thread length6.5 mm

Thread1.41 mm

Halogen freeNo

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass
