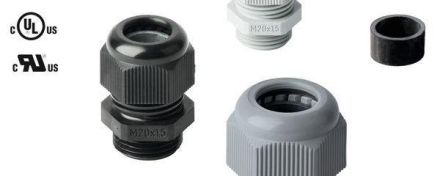

Jacob 50.021M25PA08/SW M25 polyamide IP68 black cable gland

In stock

SKU: 908323

Price on request

€1.15

€0

Overview

integrated strain relief, large sealing and clamping area, sealing area and cap nut dimensions are identical to the PERFECT Pg series 50.0xx Pazzzz, easy to install, RAL9005, connection thread standard length, cable gland metric plastic

Property	Value
Wrench size:	33 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	25
Suitable for cable diameters:	13 to 18 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	no
Thread length:	8 mm
Thread type:	metric
Design:	straight
Color:	black
Material:	plastic
With Strain relief:	yes
Surface:	untreated
Type of seal:	sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	9005
Material quality:	Polyamide (PA)
Glass fibre reinforced:	no
With Lock nut:	no
Multiple sealing insert:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
