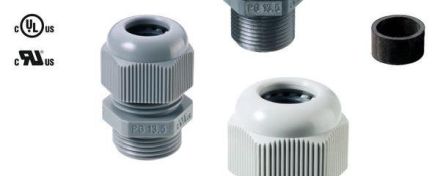

Jacob 50.036 PA7035 IP cable gland polyamide PG36

In stock

SKU: 907457

Price on request

€4.97

€0

Overview

integrated strain relief, large sealing and clamping area, easy to install, RAL7035, connection thread standard length, cable gland Pg plastic

Property	Value
Wrench size:	53 mm
Thread pitch:	1,588 mm
Nominal thread size metric/PG:	36
Suitable for cable diameters:	22 to 32 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	no
Thread length:	13 mm
Thread type:	PG
Design:	straight
Material:	Plastic
With strain relief:	yes
Surface:	untreated
Type of Seal:	Sealing ring
Impact resistant:	yes
Bending protection:	no
RAL number:	7035
Material quality:	Polyamide (PA)
Glass fibre reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no

Characteristics

Impact resistantYes

Explosion-tested versionNo

Nominal thread size metric/PG36

Fiberglass reinforcedNo

ShieldedNo

Suitable for cable diameter22 to 32mm

Wrench size53 mm

HAB50.036 PA7035

Manufacturer

HAN50.036 PA7035

GTIN4024092012211

VersionStraight

EMC versionNo

Operating temperature-20 to 100 °C

Thread typePG

Thread length13 mm

Thread1,588 mm

Halogen freeNo

With strain reliefYes

SurfaceUntreated

RAL number7035

IP protection)IP68

MaterialPlastic

Material qualityPolyamide (PA)
