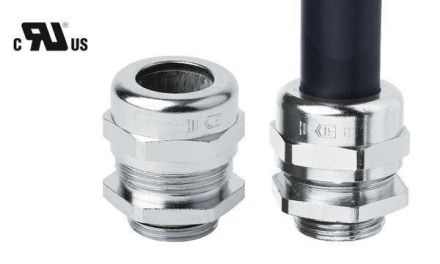

Jacob 50.612/16 M M12 nickel-plated brass for large diameter PERFECT cable gland

In stock

SKU: 908154

Price on request

€5.54

€0

Overview

especially for relatively large cable diameters, can also be used as an EMC cable gland, integrated strain relief, anti-twist protection, large sealing and clamping range, easy to install, *IP69K tested for M16 - M25, connection thread standard length, cable gland metric brass

Property	Value
Wrench size:	17 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	12
Suitable for cable diameters:	5 to 8 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	no
Thread length:	6.5 mm
Thread type:	metric
Design:	straight
Color:	other
Material:	metal
With Strain relief:	yes
Surface:	nickel-plated
Type of seal:	sealing ring
Impact-resistant:	yes
Bending protection:	no
Material quality:	brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple Sealing insert:	no
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no

Characteristics

Impact resistantYes

Explosion-tested versionNo

Nominal thread size metric/PG12

Fiberglass reinforcedNo

ShieldedNo

Suitable for cable diameter5 to 8 mm

Wrench size17 mm

HABM12 nickel-plated brass for large diameters

Minimal order100 pcs

Manufacturer

HAN50.612/16 M

GTIN4024092158865

VersionStraight

EMC versionNo

Operating temperature-20 to 100 °C

Color

Thread typeMetric

Thread length6.5 mm

Thread1.5 mm

Halogen freeNo

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass

Jacob 50.612/16 M M12 nickel-plated brass for large diameter PERFECT cable gland

Price on request

€5.54

€0
