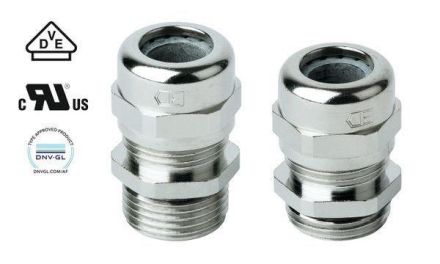

Jacob 50.612 M/EMV 50612M-EMV brass screw connection M12

In stock

SKU: 907539

Price on request

€3.65

€0

Overview

for cables and lines with shielding, integrated strain relief, anti-twist protection, large sealing and clamping range, *IP69K tested for M12 - M25, M50, M63, connection thread standard length, cable gland metric brass

Property	Value
Wrench size:	14 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	12
Suitable for cable diameters:	3 to 6 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	no
Thread length:	5 mm
Thread type:	metric
Design:	straight
Color:	other
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	sealing ring
Impact-resistant:	yes
Bending protection:	no
Material quality:	brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex zone gas:	without
For Ex zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	yes
Shielded:	yes
