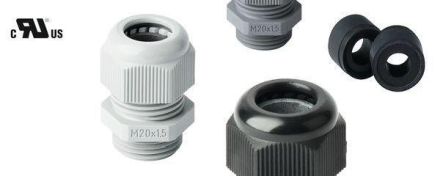

Jacob 50.625 PA/RSW M25 polyamide jet black RAL9005 PERFECT cable gland

In stock

SKU: 908268

Price on request

€1.74

€0

Overview

Reducing sealing ring for small cables, integrated strain relief, large sealing and clamping area, easy to install, RAL9005, connection thread standard length, cable gland metric plastic

Property	Value
Wrench size:	29 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	25
Suitable for cable diameters:	8 to 17 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	no
Thread length:	8 mm
Thread type:	metric
Design:	straight
Color:	black
Material:	plastic
With strain relief:	yes
Surface:	untreated
Type of seal:	Sealing ring
Impact-resistant:	yes
Bending protection:	no
RAL number:	9005
Material quality:	Polyamide (PA)
Glass fiber reinforced:	no
With lock nut:	no
Multiple sealing insert:	no
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
