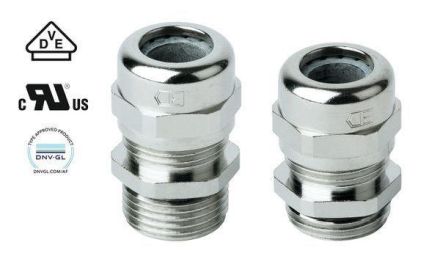

Jacob 50.632 M/EMC brass screw connection M32x1.5

In stock

SKU: 907535

Price on request

€9.51

€0

Overview

for cables and lines with shielding, integrated strain relief, anti-twist protection, large sealing and clamping range, connection thread standard length, cable gland metric brass

Property	Value
Wrench size:	34 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	32
Suitable for cable diameters:	14 to 20 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	no
Thread length:	8 mm
Thread type:	metric
Design:	straight
Color:	other
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	sealing ring
Impact-resistant:	yes
Bending protection:	no
Material quality:	brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex zone gas:	without
For Ex zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	yes
Shielded:	yes

Characteristics

Impact resistantYes

Explosion-tested versionNo

Nominal thread size metric/PG32

Fiberglass reinforcedNo

ShieldedYes

Suitable for cable diameter14 to 20 mm

Wrench size34 mm

HAB50,632 M/EMC

Manufacturer

HAN50.632 M/EMV

GTIN4024092049408

VersionStraight

EMC versionYes

Operating temperature-20 to 100 °C

Color

Thread typeMetric

Thread length8 mm

Thread1.5 mm

Halogen freeNo

With strain reliefYes

SurfaceNickel-plated

IP protection)IP68

MaterialMetal

Material qualityBrass

Jacob 50.632 M/EMC brass screw connection M32x1.5

Price on request

€9.51

€0

Into a basketIn the basketGo
