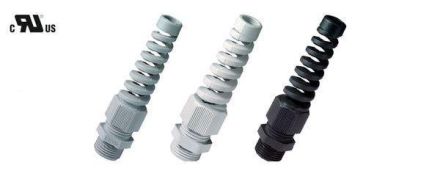

Jacob 50011M16BS7035 M16 polyamide light grey with bend protection PERFECT cable gland

In stock

SKU: 908117

Price on request

€0.79

€0

Overview

with bend protection spiral, for flexible cables, integrated strain relief, large sealing and clamping area, easy to install, RAL7035, connection thread standard length, cable gland metric plastic

Property	Value
Wrench size:	22 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	16
Suitable for cable diameters:	5 to 10 mm
Protection class (IP):	IP68
Operating temperature:	-20 to 100 °C
Halogen-free:	no
Thread length:	15 mm
Thread type:	metric
Design:	straight
Material:	plastic
With strain relief:	yes
Surface:	untreated
Type of seal:	Sealing ring
Impact-resistant:	yes
Bending protection:	yes
RAL number:	7035
Material quality:	Polyamide (PA)
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
