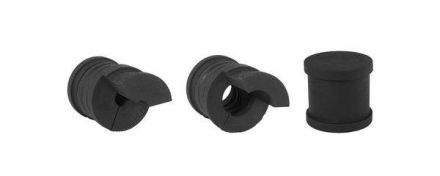

Jacob F311-9001-03 TK 7-9 for KADL clamping range 7-9 grommet

In stock

SKU: 908034

Price on request

€1.13

€0

Overview

Accessories for the KADL cable entry strip, through the slotted grommets, prefabricated cables with plugs can be introduced into the housing and sealed, absolute clamping range up to 2 mm, strain relief, tool-free assembly, easy retrofitting and adjustments

Property	Value
For wall thickness:	23.4 mm
Design:	open
Suitable for cable diameters:	7 to 9 mm
Angle design:	no
With strain relief:	yes
Bore diameter:	22.2 mm
Color:	black
Material:	plastic
Halogen-free:	yes
Fireproof:	no
Gas-tight:	no
Total length:	33 mm
Surface:	untreated
Shrink technology:	no
Protection class (IP):	IP65
Waterproof:	no
Material quality:	EPDM
Insert for cable gland:	no
Cable entry:	round
Number of cables:	1
Operating temperature:	-30 to 100 °C
