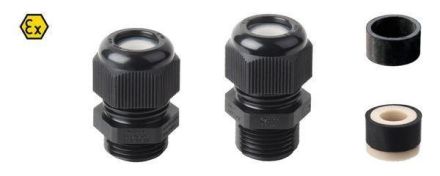

Jacob GHG9601955R0005 M32x1,5 black thread: 10mm -20/+70°C EX cable gland

In stock

SKU: 908058

Price on request

€4.03

€0

Overview

Ex cable gland made of polymide PA6, dust protection disc: polyethylene PE-LD, color: white, large sealing and clamping area, protection class: IP66 Color: jet black (RAL 9005)

Property	Value
Wrench size:	36 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	32
Suitable for cable diameters:	14 to 21 mm
Protection class (IP):	IP66
Operating temperature:	-20 to 70 °C
Halogen-free:	yes
Thread length:	10 mm
Thread type:	metric
Design:	straight
Color:	black
Material:	plastic
With strain relief:	yes
Surface:	untreated
Type of seal:	Sealing ring
Impact resistant:	no
Bending protection:	no
RAL number:	9005
Material quality:	Polyamide (PA)
Glass fiber reinforced:	no
With lock nut:	no
Multiple sealing inserts:	yes
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	yes
For Ex-zone gas:	1, 2
For Ex-zone dust:	21, 22
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
