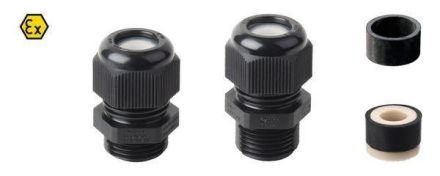

Jacob GHG9601955R0029 M20x1,5 black thread: 13mm -40/+70°C EX cable gland

In stock

SKU: 908073

Price on request

€8.80

€0

Overview

Ex cable gland made of polymide PA6, dust protection disc: polyethylene PE-LD, color: green, large sealing and clamping area, protection class: IP66 Color: jet black (RAL 9005)

Property	Value
Wrench size:	24 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	20
Suitable for cable diameters:	5.5 to 11 mm
Protection class (IP):	IP66
Operating temperature:	-40 to 70 °C
Halogen-free:	yes
Thread length:	13 mm
Thread type:	metric
Design:	straight
Color:	black
Material:	plastic
With strain relief:	yes
Surface:	untreated
Type of seal:	Sealing ring
Impact resistant:	no
Bending protection:	no
RAL number:	9005
Material quality:	Polyamide (PA)
Glass fiber reinforced:	no
With lock nut:	no
Multiple sealing inserts:	yes
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	yes
For Ex-zone gas:	1, 2
For Ex-zone dust:	21, 22
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no

Characteristics

Impact resistantNo

Explosion-tested versionYes

Nominal thread size metric/PG20

Fiberglass reinforcedNo

ShieldedNo

Suitable for cable diameter5.5 to 11mm

Wrench size24 mm

HABM20x1.5 black thread: 13mm -40/+70°C

Minimal order20 pcs

Manufacturer

HANGHG9601955R0029

GTIN4024092194245

VersionStraight

EMC versionNo

Operating temperature-40 to 70 °C

Color

Thread typeMetric

Thread length13 mm

Thread1.5 mm

Halogen freeYes

With strain reliefYes

SurfaceUntreated

RAL number9005

IP protection)IP66

MaterialPlastic

Material qualityPolyamide (PA)

Jacob GHG9601955R0029 M20x1,5 black thread: 13mm -40/+70°C EX cable gland

Price on request

€8.80

€0
