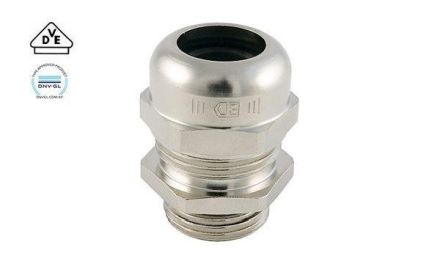

Jacob K150-1025-00 K150 WADI one M25x1.5 IP66 brass cable gland

In stock
SKU: 908081
€8.79
Into a basketIn the basketGo

Overview

Cable gland for a secure and cable-friendly seal, material: brass CuZn39Pb3, galvanically nickel-plated, metric, high strain relief, large sealing and clamping area, the sealing insert can be quickly adapted to the existing cable diameter. Temperature range: -40 °C / +100 °C (dynamic)

Property Value
Wrench size: 32 mm
Thread pitch: 1.5 mm
Nominal thread size metric/PG: 25
Suitable for cable diameters: 12.5 to 20.5 mm
Protection class (IP): IP66
Operating temperature: -40 to 100 °C
Halogen-free: yes
Thread length: 8 mm
Thread type: metric
Design: straight
Color: other
Material: metal
With strain relief: yes
Surface: nickel-plated
Type of seal: Sealing ring
Impact resistant: yes
Bending protection: no
Material quality: Brass
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: yes
Flat cable gland: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-zone gas: without
For Ex-zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG25
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter12.5 to 20.5mm
Wrench size32 mm
HABK150 WADI one M25x1,5 IP66
Minimal order50 pcs
ManufacturerJacob
HANK150-1025-00
GTIN4024092195969
VersionStraight
EMC versionNo
Operating temperature-40 to 100 °C
ColorOther
Thread typeMetric
Thread length8 mm
Thread1.5 mm
Halogen freeYes
With strain reliefYes
SurfaceNickel-plated
IP protection)IP66
MaterialMetal
Material qualityBrass
