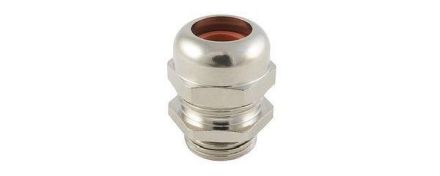

Jacob K160-1025-00 K160 WADI rail M25x1.5 IP66 brass cable gland

In stock

SKU: 908092

Price on request

€9.29

€0

Overview

Cable gland for a secure and cable-friendly seal, brass CuZn39Pb3, galvanically nickel-plated, material of the sealing insert meets the highest requirements for fire behavior, UL 94 V-0 and EN 45545-2 HL3, metric, high strain relief, large sealing and clamping area, the sealing insert can be quickly adapted to the existing cable diameter.

Property	Value
Wrench size:	32 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	25
Suitable for Cable diameter:	12.5 to 20.5 mm
Protection class (IP):	IP66
Operating temperature:	-60 to 100 °C
Halogen-free:	yes
Thread length:	8 mm
Thread type:	metric
Design:	straight
Color:	other
Material:	Metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	Sealing ring
Impact-resistant:	yes
Bending protection:	no
Material quality:	Brass
Fiberglass reinforced:	no
With Lock nut:	no
Multiple sealing insert:	yes
Flat cable screw connection:	no
Dividable screw connection:	no
Explosion-tested version:	no
For Ex-zone gas:	without
For Ex-zone dust:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
