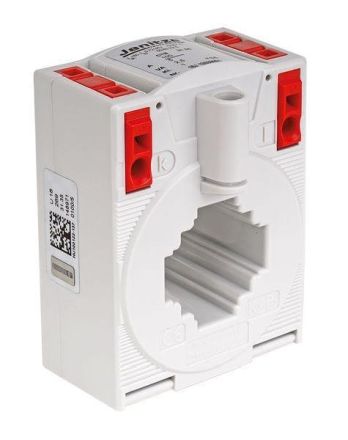

Janitza 100/5A 2.5VA Kl.1 plug-in current transformer

In stock
SKU: 889980
€34.14
Into a basketIn the basketGo

Overview

Plug-in current transformer 100/5APrimary current: 100 ASecondary current: 5 APower: 2.5 VAClass: 1Primary conductor: 30 x 10 mm 25 x 12 mm 20 x 20 mmRound conductor: 25.7 mmWidth: 60 mmHousing classification: UL94-V2Protection class: IP20Ambient temperature: -5.... +50°CWeight: 0.23 kg

Property Value
Overcurrent limiting factor: FS 5
With touch protection: yes
Version: Plug-in current transformer
Primary rated current In: 100 A
Secondary rated current: 5 A
Secondary rated apparent power: 2.5 VA
Snap-on fastening: yes
Number of primary inputs: 1
With copper bar: no
Opening diameter: 25.7 mm

Characteristics

HAB100/5A 2.5VA Class 1
ManufacturerJanitza
HAN1503272
GTIN4251861100538
VersionPlug-in current transformer
