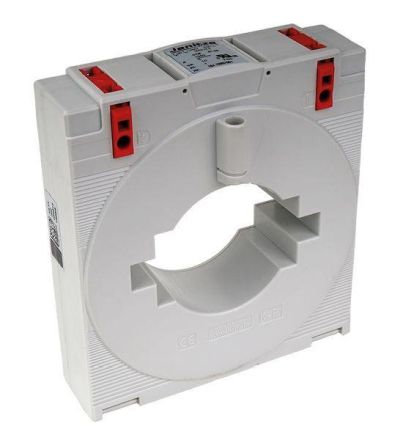

Janitza 1500/5A 10VA Kl.1 plug-in current transformer

In stock
SKU: 889992
€161.93
Into a basketIn the basketGo

Overview

Plug-in current transformer 1500/5APrimary current: 1500 ASecondary current: 5 APower: 10 VAClass: 1Primary conductor: 80 x 10 mm 60 x 30 mmRound conductor: 54.7 mmWidth: 120 mmHousing classification: UL94-V2Protection class: IP20Ambient temperature: -5.... +50°CWeight: 0.35 kg

Property Value
Overcurrent limiting factor: FS 5
With touch protection: yes
Design: Plug-in current transformer
Primary rated current In: 1500 A
Secondary rated current: 5 A
Secondary rated apparent power: 10 VA
Snap fastening: yes
Number of primary inputs: 1
With copper bar: no
Opening diameter: 54.7 mm

Characteristics

HAB1500/5A 10VA Class 1
ManufacturerJanitza
HAN1503284
GTIN4251861100644
VersionPlug-in current transformer
