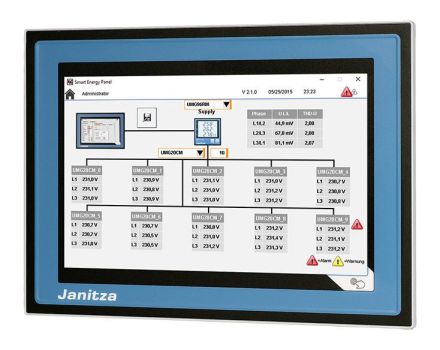

Smart Energy Panel - JPC 70Display device for optimal representation of the most important parameters of the power supplySupply voltage:-24 VDC -15% / +20% -max. Power consumption 6.2WDisplay: -7' analog resistive -Resolution 800x400 pixelsProcessor: -ARM Cortex-A8, 1GHz, RAM 256MBInterfaces:-2x USB, 1x RJ45 with up to 100MBits/s, 1x RS485Dimensions (lxwxh)-197 mm x 140 mm x 47.8 mmEnvironmental conditions:-IP65 front, IP20 rear according to EN60529 -Operating temperature -20°C - 60 °C Storage temperature -20°C - 70°CWeight: 600gApplication:-Visualization of a Modbus master* and up to 10 Modbus slave devices** -Configuration of the power channels -Integrated alarm management -Configurable user management -Remote access via VNCScope of delivery:-Touch display -5x retaining clips for fastening the Panels in the installation cutout -2x field terminal for power supply and fieldbus connection -Pre-configured application*Suitable master devices are:-UMG 96-RM-E, UMG 604-PRO ,UMG 605-PRO ,UMG 509-PRO -UMG 512-PRO ,ProData**Suitable slave devices are:-UMG 20CM
