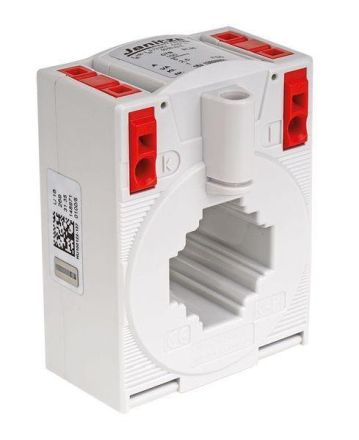

Janitza 300/5A 5VA Kl.1 plug-in current transformer

In stock

SKU: 889984

Price on request

€34.14

€0

Overview

Plug-in current transformer 300/5APrimary current: 300 ASecondary current: 5 APower: 5 VAClass: 1Primary conductor: 30 x 10 mm 25 x 12 mm 20 x 20 mmRound conductor: 25.7 mmWidth: 60 mmHousing classification: UL94-V2Protection class: IP20Ambient temperature: -5.... +50°CWeight: 0.23 kg

Property	Value
Overcurrent limiting factor:	FS 5
With touch protection:	yes
Design:	Plug-in current transformer
Primary rated current In:	300 A
Secondary rated current:	5 A
Secondary rated apparent power:	5 VA
Snap fastening:	yes
Number of primary inputs:	1
With copper bar:	no
Opening diameter:	25.7 mm
