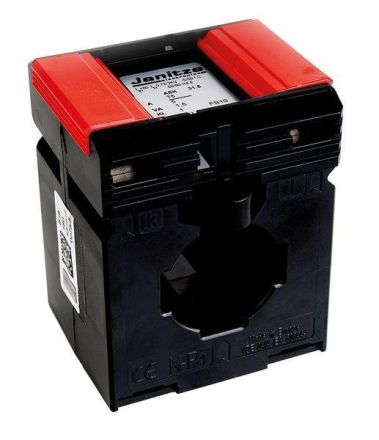

Janitza 75/5A 1.5VA Kl.1 plug-in current transformer

In stock

SKU: 889979

Price on request

€32.89

€0

Overview

Plug-in current transformer 75/5APrimary current: 75 ASecondary current: 5 APower: 1.5 VAClass: 1Primary conductor: 30 x 10 mm 20 x 10 mmRound conductor: 28 mmWidth: 61 mmHousing classification: UL94-V2Protection class: IP20Ambient temperature: -5.... +50°CWeight: 0.45 kg

Property	Value
Overcurrent limiting factor:	FS 5
With touch protection:	yes
Design:	Plug-in current transformer
Primary rated current In:	75 A
Secondary rated current:	5 A
Secondary rated apparent power:	1.5 VA
Snap fastening:	yes
Number of primary inputs:	1
With copper bar:	no
Opening diameter:	28 mm
