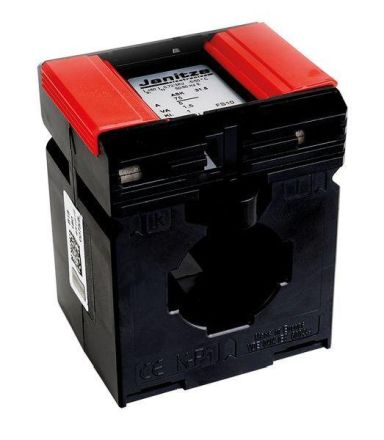

Janitza 80/5A 2.5VA Kl.1 plug-in current transformer

In stock

SKU: 889972

Price on request

€45

€0

Overview

Moulded case current transformer - ASK 21.3 - 80/5APrimary current: 80 ASecondary current: 5 APower: 2.5 VAClass: 1Primary conductor: 20 x 10 mmRound conductor: 19.2 mmWidth: 61 mmHousing classification: UL94-V2Protection class: IP20Ambient temperature: -5.... +50°CWeight: 0.32 kg

Property	Value
Overcurrent limiting factor:	FS 5
With touch protection:	yes
Design:	Plug-in current transformer
Primary rated current In:	80 A
Secondary rated current:	5 A
Secondary rated apparent power:	2.5 VA
Snap-on fastening:	no
Number of primary inputs:	1
With copper bar:	no
Opening diameter:	19.2 mm
