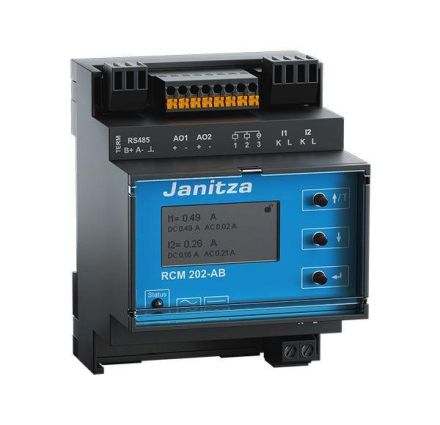

Janitza RCM 202-AB residual current monitoring device

In stock
SKU: 889964
€914.88
Into a basketIn the basketGo

Overview

Residual current monitoring device RCM 202-AB The RCM 202-AB is used with connected current transformers to measure and monitor residual currents of type A, B and B+ in TN and TT systems (earthed AC systems).Supply voltage:85 ... 305 V AC (50/60Hz)- Residual current measurement via up to two connected current transformers- Transformer connection monitoring for wire breakage or short circuit per channel- Recording, evaluation and monitoring of residual currents of type A and B in accordance with IEC 62020- Recording of sinusoidal alternating residual currents with frequencies up to 20 kHz (type B+)- Measured value and extreme value memory with time stampMeasuring channels- Two current transformer connections (compatible with all Janitza residual current transformers)- Measuring range AC/DC: 10mA ... 20AMeasured value display and operation- Two-color LED display (128 x 64 Pixel)- 3-button operation- German, English and Spanish user interface selectableCommunication- RS485 interface (protocol: Modbus RTU)- Compatible with all communication-capable Janitza Modbus master devices

Property Value
Number of contacts as normally closed: 2
Type of voltage for actuation: AC
Max. permissible response delay time: 10 s
Design of the electrical connection: Plug connection
Number of contacts as normally open: 2
Min. adjustable response delay time: 0.01 s
Response value current 1: 30 to 20000 mA
Rated frequency: 45 to 65 Hz
Response value current 2: 30 to 20000 mA
Width: 71 mm
Height: 90 mm
Depth: 73 mm
With removable Terminals: yes
Function: for mixed networks
Display of the residual current: yes
Fault storage possible: yes
Rated control supply voltage Us at AC 50 Hz: 90 to 276 V
Rated control supply voltage Us at AC 60 Hz: 90 to 276 V

Characteristics

Rated frequency45 to 65 Hz
HABRCM 202-AB
ManufacturerJanitza
HAN1401627
GTIN4251861102495
Number of contacts as normally open2
Number of contacts as opener2
Design of the electrical connectionPlug connection
Rated control supply voltage Us at AC 50 Hz90 to 276 V
Rated control supply voltage Us at AC 60 Hz90 to 276 V
Width71 mm
FunctionFor mixed networks
Height90 mm
With removable clampsYes
Voltage type for actuationAC
Depth73 mm
Janitza RCM 202-AB residual current monitoring device
Janitza RCM 202-AB residual current monitoring device
€914.88
