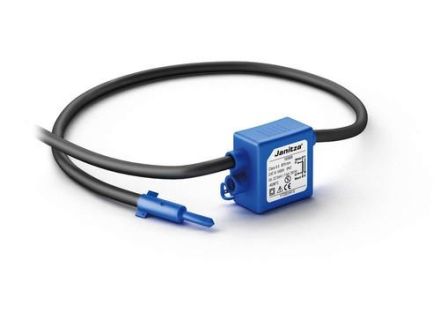

Rogowski current transformer Ø 70 mmThe Rogowski coil is used for AC current measurement of busbars and cables.The output signal of the Rogowski coil is fed to the measuring transducer, which outputs a standardized AC current of maximum 1 A. -Frequency bandwidth 50/60 Hz, up to 700Khz in idle mode (without load) -Accuracy according to class 0.5 in accordance with IEC 61869 -Operating temperature: -40°C to +80°C -Rated insulation voltage 1kV CAT III -Length of connecting cable 3m -In conjunction with Janitza RogoTrans measuring transducer up to 4000A
