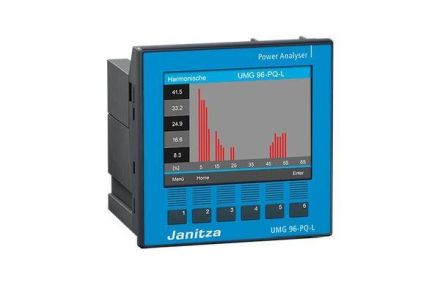

Janitza UMG 96-PQ-L, 90-277V power quality analyzer

In stock
SKU: 889961
€599.07
Into a basketIn the basketGo

Overview

UMG 96-PQ-L energy meter with clock, battery and measurement data memory (64MB)Front panel installation device, 96 x 96 x 86 mm (WxHxD) Supply voltage:90 V - 277 V (50/60) Hz or 90 V - 250 V DCInstallation category: 300 V CAT III Measurement in TN and TT networksMeasurement of harmonics up to 65.Real energy class 0, 2S3 voltage measurement inputs:Measurement category: 600 V CAT III Measurement in 3-phase 4-wire systems up to 417 V/720 V (+-10%) according to IEC Measurement in 1-phase 2-wire systems up to 480 V (+-10%)3 current measurement inputs:Measurement category: 300V CAT II Nominal current 5A / 1A adjustable Current measurement range: 5 mA... 6 AResolution: 0, 1mAPeripherals:3x digital inputs and outputs each1x analog output 1x RS485 (Modbus RTU)Accessories (included):33.03.389 Installation instructions including safety instructions and GridVis quick start software52.22.251 Mounting kit 52.00.008 RS485 terminating resistor 120 OhmGridVis Essentials programming software download: www.janitza.de/gridvis-download.html

Property Value
Display: graphical
Number of voltage input channels: 3
Number of current input channels: 3
Current measurement: direct current measurement
Harmonics measurement: yes
Power factor: yes
Active power: yes
Reactive power: yes
Apparent power: yes
Phase angle (cos phi): yes
Power/work: yes
Interface: yes
Measurement value memory: yes

Characteristics

HABUMG 96-PQ-L, 90-277V
ManufacturerJanitza
HAN5236001
GTIN4251861102570
Power factorYes
InterfaceYes
Janitza UMG 96-PQ-L, 90-277V power quality analyzer
