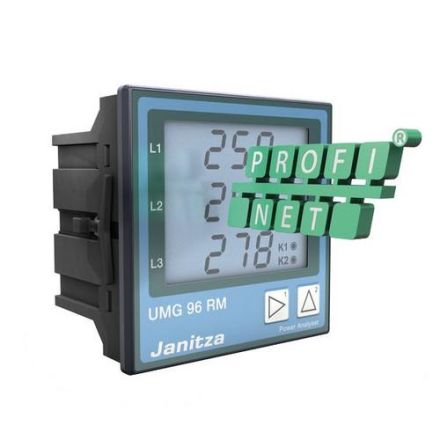

Energy meter UMG 96RM-PN with Profinet, (UL) supply voltage 24V..90V (50/60Hz), 24V..90V DC, 150V CATIII voltage measurement, measurement category 300V CATIII, 3 voltage measurement inputs (LN: 20V-300V, LL: 34V- 520V, 45Hz-65Hz), 3+1 current measurement inputs 0..5A, response current 5mA, measurement in three-phase 4-wire systems with earthed neutral conductor up to max. 277V / 480V, measurement in earthed three-phase 3-wire systems up to max. 480V, measurement in earthed single-phase 3-wire systems up to max. 220V-440V, measurement in earthed single-phase 2-wire systems up to max. 220V, 2 digital outputs3 digital inputs/outputs, configurable2 analog inputs, optionally as temperature or differential current measurement input, homepage, interfaces: RS485, EthernetProtocol: Profinet, TCP / IP, Modbus RTUAccessories (included):33.03.339 Installation instructions, safety instructions and GridVis quick start software52.22.251 Mounting kit 08.01.505 Patch cable 2m twisted gray52.00.008 RS485 terminating resistor 120 OhmGridVis Basic programming software download: www.janitza.de/gridvis-download.html
