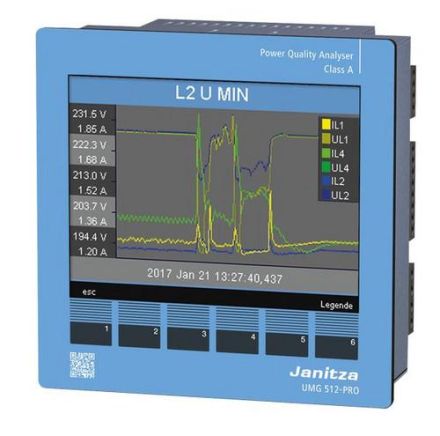

Janitza UMG512-PRO Uh=95V-240V AC (UL) Power Quality Analyzer

In stock
SKU: 890069
€3,553.79
Into a basketIn the basketGo

Overview

Class A (IEC 61000-4-30) power quality analyzer with RCM Supply voltage: 95 - 240V (50/60Hz), 80 - 300V DC Installation category: 300V CATIII 4 voltage measurement inputs, measurement category: 600V CATIII Measurement in three-phase 4-wire systems up to 417V/720V, measurement in three-phase 3-wire systems up to 600V, 4 current measurement inputs for current transformers ../1 or ../5ACurrent measurement range: 0.001 .. 7Arms, 2 digital inputs, 2 digital outputs 1 temperature input, 2 RCM inputs Data storage: 256MB Flash, interfaces: RS485, Profibus DP V0, Ethernet 10/100 BaseTX Incl. Web server and the following APPs: APP Measured value monitor: Graphical representation of online & historical measured values APP EN 50160 Watchdog PRO: Monitoring of the voltage quality limit values according to EN 50160APP IEC 61000-2-4 Watchdog PRO: Monitoring of the voltage quality limit values according to IEC 61000-2-4GridVis Basic programming software download: www.janitza.de/gridvis-download.htmlIncluded in delivery: Item no.: 5219301, 2 mounting clipsItem no.: 0801505, Cross-patch cable, CAT5e, 2m, grey/greenItem no.: 3303336 Quick start guide UMG 512 incl. safety instructions incl. GridVis software Quick start guide

Property Value
Display: graphic
Number of voltage input channels: 4
Number of current input channels: 4
Current measurement: direct current measurement
Harmonics measurement: yes
Power factor: yes
Active power: yes
Reactive power: yes
Apparent power: yes
Phase angle (cos phi): yes
Power/work: yes
Interface: yes
Measured value memory: yes

Characteristics

HABUMG512-PRO Uh=95V-240V AC (UL)
ManufacturerJanitza
HAN5217011
GTIN4251861100262
Power factorYes
InterfaceYes
Janitza UMG512-PRO Uh=95V-240V AC (UL) Power Quality Analyzer
Janitza UMG512-PRO Uh=95V-240V AC (UL) Power Quality Analyzer
