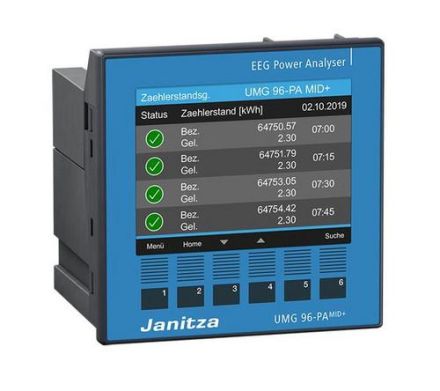

Energy meter UMG 96-PA MID+MID certified Meter reading certified according to PTB-A 50.7with clock, battery and measurement data storage 2 years tamper-proof measurement data storage for meter readingFront panel installation device, 96 x 96 x 86 mm (WxHxD) Supply voltage: 90 V - 277 V (50/60) Hz or 90 V - 250 V DCInstallation category: 300 V CAT IIIMeasurement in TN and TT networksMeasurement of harmonics up to 40Active energy class 0, 2SEU type examination certificate VDE-40048947Tested according to EN 50470-1, EN 50470-3, CLC TR 50579Input voltage range: 3 x 57/100 to 3 x 230/400 VCuracy class B according to EN 50470-1 Pulse value of the S0 interface: without converter 10000 pulses/kWh, automatic adjustment of the pulse value when using measuring transformers The 1st digital output is defined as an S0 interface for active energy consumed and supplied. Incl. Meter reading measurement3 voltage measurement inputsMeasurement category: 600 V CAT III Measurement in 3-phase 4-wire systems up to 417 V/720 V (+-10%) according to IEC Measurement in 1-phase 2-wire systems up to 480 V (+-10%)3 current measurement inputsMeasurement category: 300V CAT II Nominal current 5A/2A/1A adjustable (MID-compliant) Current measurement range: 5 mA... 6 AResolution: 0.1 mA Peripherals:3x digital inputs and outputs each (one is fixed)1x analog output 1x RS485 (Modbus RTU) Accessories (included):33.03.375 Installation instructions including safety instructions and GridVis software quick start29.01.092 Terminal cover supply29.01.093 Terminal cover measurement29.01.065 Silicone seal 96 x 9652.22.251 Mounting kit 52.00.008 RS485 terminating resistor 120 Ohm
