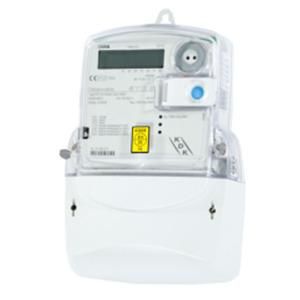

KDK three-phase transformer meter, - Voltage: 3*230/400V, - Current: 5.1A, - Frequency: 50Hz, - Measured variable: Active energy for supply and reference direction, - Number of tariffs: 2, - Counter type: Illuminated LC display, - Digits: 5.2, - Accuracy: B, - Own consumption per phase: 0.16VA(I)-10VA(U), - Temperature range: -25° to +60°C, - Protection class: IP54, - Backstop: no, - IR readout interface, - Manipulation detection, - Pulse outputs for supply and reference direction, - Measuring period output (MPA) and synchronization input (MPE):, - Pulse output: 2 x 5,000 pulses/kWh, - Input/output module: MIO-V12L51, - Approval: MID conformity, direct can be used for billing purposes, - with terminal cover,
| Property | Value |
| Calibrated: | yes |
| Pole type: | three-wire |
| Meter type: | electronic |
| Display type: | digital |
| Mounting type: | Attachment |
| Accuracy class: | B |
| Maximum current (Imax): | 5 A |
| Nominal voltage (Un) NL: | 230 V |
| Pulse rate: | 5000 Imp/kWh (kvarh) |
| Protection class (IP): | IP54 |
| Frequency: | 50 Hz |
| Tariff version: | Two-tariff |
| Energy type: | Active power |
| Nominal current (In): | 1 A |
| Version: | Measuring transformer |
| With lock code: | no |
| Pulse type: | S0 |
| Nominal voltage (Un) LL: | 400 V |
| Number of digits: | 5.2 |
| Suitable for: | Purchase/delivery |
| Backstop: | no |
| Approval: | Measuring Instruments Directive |
| Pulse output: | electrical |
| Interface type: | RS-485 |
