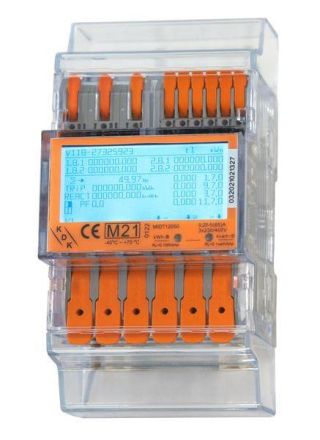

DIN rail mounting independent of position, DIN EN 60715.2001-09, active and reactive power measurement, both capacitive and inductive, measurement of supply and consumption (2 directions), apparent energy recording, energy recording in 4 tariffs, one tariff switching input, backstop per energy register, resettable kWh counter, display of energy quality features, LC display, 6, 3-digit with backlight, declaration of conformity according to MID, suitable for billing purposes, S0 pulse output for both energy directions, pulse rate adjustable via software, connection terminals in push-in CAGE CLAMP® technology, approved for two-wire, three-wire & four-wire networks, sturdy plastic housing, 4 TE wide, Mbus and Modbus interface selectable on site, programming and reading via Bluetooth4.0 via appU=3x230/400 V, I=5(65A), Hz=50/60Hz
| Property | Value |
| Width in division units: | 4 |
| Calibrated: | yes |
| Pole type: | Three-wire |
| Meter type: | electronic |
| Display type: | digital |
| Mounting type: | REG |
| Accuracy class: | B |
| Maximum current (Imax): | 100 A |
| Nominal voltage (Un) NL: | 230 V |
| Pulse rate: | 1000 Imp/kWh (kvarh) |
| Protection class (IP): | IP50 |
| Frequency: | 50 Hz |
| Tariff version: | Two-tariff |
| Tariff control: | external |
| Energy type: | Active and reactive power |
| Nominal current (In): | 5 A |
| Design: | Direct measurement |
| Measurement type load profile: | no |
| EDL40 signature: | no |
| With lock code: | no |
| Pulse type: | S0 |
| Nominal voltage (Un) LL: | 400 V |
| Number of Positions: | 6.2 |
| Suitable for: | Purchase/delivery |
| Backstop: | yes |
| Approval: | Measuring Instruments Directive |
| Pulse output: | electrical |
| Interface design: | EN 62056-21 |
