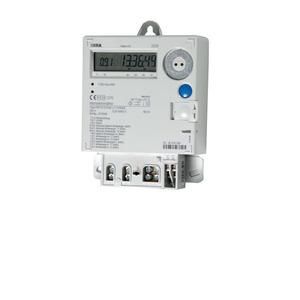

KDK Dornscheidt 5/60A MID AC meter

In stock
SKU: 911337
€56.70
Into a basketIn the basketGo

Overview

KDK electronic alternating current meter replacement for induction meter (Ferraris) single tariff fully electronic, with LCD display, current range: 5(60)A, voltage level: 230V, 50Hz, accuracy class B with backstop, SO interface 1000 lmp/KWh, housing: ISO, digits: 6, 1, with MID declaration of conformity, with terminal cover, item no. 130560-03

Property Value
Calibrated: yes
Pole type: 1-phase
Meter type: electronic
Display type: digital
Mounting type: Attachment
Accuracy class: A
Maximum current (Imax): 60 A
Nominal voltage (Un) NL: 230 V
Protection class (IP): IP52
Frequency: 50 Hz
Tariff version: Single tariff
Energy type: Active power
Nominal current (In): 5 A
Version: Direct measurement
Measurement type load profile: no
Number of digits: 7.1
Suitable for: Reference
Backstop: yes
Approval: Measuring Instruments Directive

Characteristics

Maximum current (Imax)60 A
Accuracy classA
HAB5/60A MID
ManufacturerKDK Dornscheidt
HAN130560-03
GTIN4260148838217
VersionDirect measurement
Frequency50Hz
Suitable forRelation
Mounting typeCultivation
Nominal current (In)5A
IP protection)IP52
PermitMeasuring Instruments Directive
KDK Dornscheidt 5/60A MID AC meter
KDK Dornscheidt 5/60A MID AC meter
€56.70
Into a basketIn the basketGo
