KDK Dornscheidt 5/85A brand new MID AC meter

In stock
SKU: 911273
€81.56
Into a basketIn the basketGo

Overview

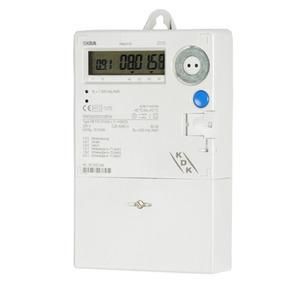

KDK electronic AC meter, - 2 direction meters for supply and consumption, - Voltage: 230V, - Current range: 5(85)A, - Frequency: 50Hz, - LCD display 6, 1-digit, - Housing according to DIN 43857-1, - brand new with terminal cover, - with MID declaration of conformity can be used directly for billing purposes, - Accuracy class B, - with backstop, - S0 pulse output, - RS-485 interface, - with IR interface, - internal real-time clock

Property Value
Calibrated: yes
Pole type: 1-phase
Meter type: electronic
Display type: digital
Mounting type: Attachment
Accuracy class: B
Maximum current (Imax): 85 A
Rated voltage (Un) NL: 230 V
Pulse rate: 500 Imp/kWh (kvarh)
Protection class (IP): IP53
Frequency: 50 Hz
Tariff version: Two-tariff
Energy type: Active power
Nominal current (In): 5 A
Version: Direct measurement
Measurement type load profile: no
EDL40 signature: no
With lock code: no
Pulse type: S0
Number of digits: 6.1
Suitable for: Purchase/delivery
Backstop: yes
Approval: Measuring Instruments Directive
Pulse output: electrical
Interface design: RS-485

Characteristics

Maximum current (Imax)85 A
Accuracy classB
HAB5/85A brand new MID
ManufacturerKDK Dornscheidt
HAN130585-2R-MID
GTIN4260148832161
VersionDirect measurement
Implementation of the interfaceRS-485
Frequency50Hz
Suitable forPurchase/Delivery
Mounting typeCultivation
Nominal current (In)5A
IP protection)IP53
PermitMeasuring Instruments Directive
