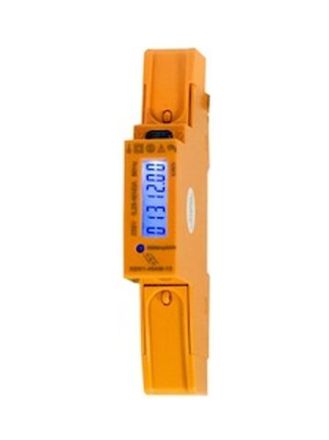

KDK Dornscheidt 5(50)A 1TE wide with display AC DIN rail meter

In stock
SKU: 911440
€46.72
Into a basketIn the basketGo

Overview

KDK DIN rail AC meter, - Voltage: 230V, - Current range: 5(50)A, - Accuracy class: B, - 5, 2-digit LC display with backlight, - Active energy recording, - with S0 pulse generator in accordance with DIN EN 62053-31, - Pulse rate: 2,000 pulses/kWh on delivery, - with backstop, - Housing 1 HP wide for mounting on a mounting rail, - in accordance with DIN EN 60715.2001-09, - not calibrated, - packed in individual boxes

Property Value
Width in division units: 1
Calibrated: no
Pole type: 1-phase
Meter type: electronic
Display type: digital
Mounting type: REG
Accuracy class: B
Maximum current (Imax): 50 A
Nominal voltage (Un) NL: 230 V
Pulse rate: 2000 Imp/kWh (kvarh)
Protection class (IP): IP52
Frequency: 50 Hz
Tariff version: Single tariff
Nominal current (In): 5 A
Version: Direct measurement
Pulse type: S0
Number of digits: 5.2
Backstop: yes
Pulse output: electrical

Characteristics

Maximum current (Imax)50 A
Accuracy classB
HAB5(50)A 1TE wide with display
ManufacturerKDK Dornscheidt
HAN460550-LCD
GTIN4260148836183
VersionDirect measurement
Width in pitch units1
Frequency50Hz
Mounting typeREG
Nominal current (In)5A
IP protection)IP52
