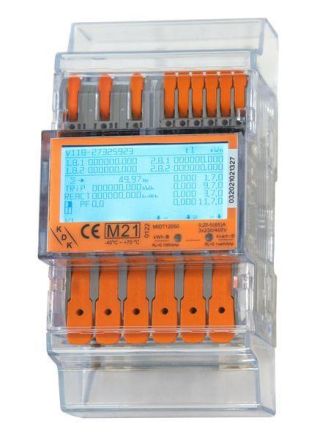

KDK DIN rail three-phase meter, - direct connection 100A, Modbus, - voltage: 3x230/400V, - current: 5(100)A, - frequency: 50Hz, - measured variable: active and reactive energy in supply and consumption direction, - number of tariffs: 2, - Modbus interface, - counter type: illuminated LC display, - digits: 6, 2, - accuracy: B, - own consumption per phase: less than 2W, - temperature range: -40° to +70°C, - protection class: IP51, - backstop: yes, - pulse output: 1,000 pulses/kWh, adjustable, one each for supply and consumption, - energy quality characteristics: U, I, f, P, S, cos phie, - resettable counter, - approval: MID conformity, - programming software with IR probe, - TK holder optional under order no. 500104 available.,
| Property | Value |
| Width in division units: | 4 |
| Calibrated: | yes |
| Pole type: | three-wire |
| Meter type: | electronic |
| Display type: | digital |
| Mounting type: | REG |
| Accuracy class: | B |
| Maximum current (Imax): | 100 A |
| Nominal voltage (Un) NL: | 230 V |
| Pulse rate: | 1000 Imp/kWh (kvarh) |
| Protection class (IP): | IP50 |
| Frequency: | 50 Hz |
| Tariff version: | Two-tariff |
| Tariff control: | external |
| Energy type: | Active and reactive power |
| Nominal current (In): | 5 A |
| Design: | Direct measurement |
| Measurement type load profile: | no |
| EDL40 signature: | no |
| With lock code: | no |
| Pulse type: | S0 |
| Nominal voltage (Un) LL: | 400 V |
| Number of Positions: | 6.2 |
| Suitable for: | Purchase/delivery |
| Backstop: | yes |
| Approval: | Measuring Instruments Directive |
| Pulse output: | electrical |
| Interface design: | EN 62056-21 |
