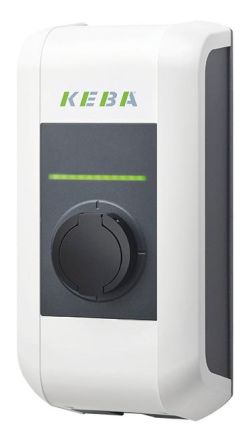

22 kW, Type 2 socket, master, RFID/ISO 15118 (PnC), MID, LAN/WLAN, OCPP/UDP/Modbus TCP, DC protection, CP-ready KeContact P30 Wallbox x-series RFID-MID - GREEN EDITION Type2 Socket 22 kW - 15118 Ready The wallbox with an output of 22 kW enables Mode 3 charging via the built-in Type 2 standard socket (32 A / 400 V AC). It has a MID energy meter and can be used as a master in local load management. Authentication is via RFID. The OCPP backend also makes it possible to bill for the amount of energy used. An external meter can also be integrated via Modbus. The wallbox is of protection class I and corresponds to protection class IP54. It also has an internal DC residual current monitor (RDC-DD > 6mA). The wallbox can be mounted indoors or outdoors, directly on the wall or a column (not included). Additional features: LSA+ terminals (10/100/1,000 Mbit/s) RJ45, USB2.0 Type A, automatic power reduction in the event of overtemperature
