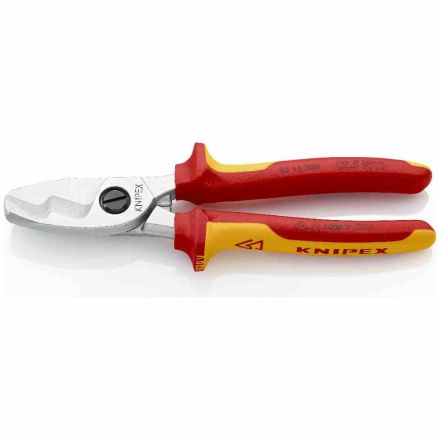

Knipex 9516200SB cable shears 200mmSB with pre- and post-cut (0304091)

In stock
SKU: 412722
€55.55
Into a basketIn the basketGo

Overview

For cutting Cu and Al cables. Not suitable for steel wire and hard-drawn copper conductors. Hardened blades with precision grinding. Cuts smoothly and cleanly without crushing. Easy cutting with one-hand operation. With pre- and post-cutting (1st and 2nd cutting edge) cables up to 20 mm in diameter can also be cut. Low effort due to favorable transmission ratios and special cutting geometry. Clamp protection prevents crushing injuries. Adjustable screw joint, self-locking. Special tool steel in special quality, forged, oil-hardened

Property Value
Weight (kg) : 0.362
Total length (mm) : 200
Insulated: yes
Design/operation: mechanical one-hand
Suitable for max. cable diameter (mm) : 20
Max. Cable cross-section (mm) : 70
Suitable for multi-wire conductors: no
Suitable for fine-wire conductors: no
Suitable for solid conductors: no
Suitable for steel wire braiding: no
Cutting head replaceable: no
Cutting jaws replaceable: no
Protective insulation 1000 V: yes
VDE tested: yes
Handle design: 2-components

Characteristics

VDE testedYes
Version/operationMechanical one-hand
HAB9516200SB
ManufacturerKnipex
HAN0304091
GTIN4003773040910
Suitable for fine-stranded conductorsNo
Suitable for solid laddersNo
Suitable for stranded conductorsNo
Handle design2 components
IsolatedYes
Protectively insulated 1000 VYes
