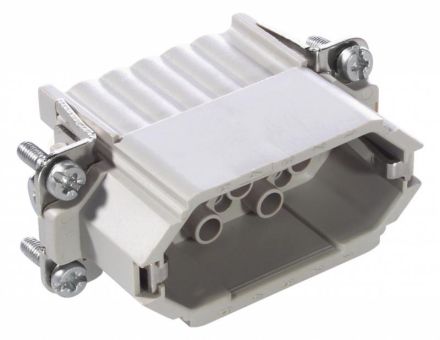

Lapp 11255000 EPIC HD 15 SCG connector insert

In stock

SKU: 893157

Price on request

€14.52

€0

Overview

Machine and equipment construction, control technology, inserts of the HD connector series are designed for applications where a high number of contacts is required.,

Property	Value
Number of poles:	15
Rated current In:	10 A
Rated impulse voltage:	2.5 kV
With protective conductor:	yes
Connectable conductor cross-section, stranded:	0.14 to 2.5 mm²
Material of the Connector insert:	Thermoplastic
Rated voltage:	250 V
Overvoltage category:	II
Ambient temperature:	-40 to 125 °C
Contact design:	Pin
Diameter of the plug contact:	1.6 mm
Pollution level:	3
Material of the contact:	Brass
Connectable conductor cross-section, single-wire:	0.14 to 2.5 mm²
Connectable conductor cross-section, fine-wire with wire end ferrule:	0.14 to 2.5 mm²
Connectable conductor cross-section, fine-wire without wire end ferrule:	0.14 to 2.5 mm²
Contact insert without contacts:	no
Material of the contact coating:	Silver
Design of the electrical connection:	Crimp connection
With Wire protection:	yes
Flammability class of the insulating material according to UL 94:	V0
Min. number of mating cycles:	500
Width:	23 mm
Height:	35 mm
