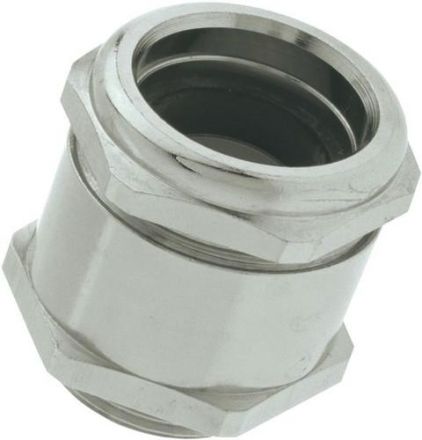

Lapp 52010510 SKINDICHT SHVE PG 13/11/11/7 cable gland

In stock
SKU: 949839
€11.64
Into a basketIn the basketGo

Overview

Grounding cable screw connection, Application areas wherever electrical interference fields can occur., Medical technology, frequency converters, airports, measurement, control and regulation technology, Optimal, low-resistance 360° shield contact, High protection class, High strain relief, 1 intermediate nozzle, 2 grounding sleeve, 3 sealing cone, 4 brass cone, 5 pressure screw,

Property Value
Wrench size: 22 mm
Metric thread size: 13.5
Protection class (IP): IP68
Operating temperature: -20 to 80 °C
Halogen-free: no
Thread length: 5.5 mm
Thread type: PG
Color: other
Material: metal
Impact-resistant: no
Material quality: brass
Design: straight
With Strain relief: yes
Surface protection: nickel-plated
Type of seal: sealing ring
Bending protection: no
Fiberglass reinforced: no
With lock nut: no
Flat cable gland: no
Explosion-tested version: no
For Ex zone Dust: without
Snaps into opening: no
For armored cables: no
EMC version: yes
Shielded: yes

Characteristics

Impact resistantNo
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedYes
Wrench size22 mm
HABSKINDICHT SHVE PG 13/11/11/7
Minimal order25 pcs
ManufacturerLapp
HAN52010510
GTIN4044773424041
VersionStraight
EMC versionYes
Operating temperature-20 to 80 °C
ColorOther
Thread typePG
Thread length5.5 mm
Halogen freeNo
With strain reliefYes
Surface protectionNickel-plated
IP protection)IP68
MaterialMetal
Material qualityBrass
