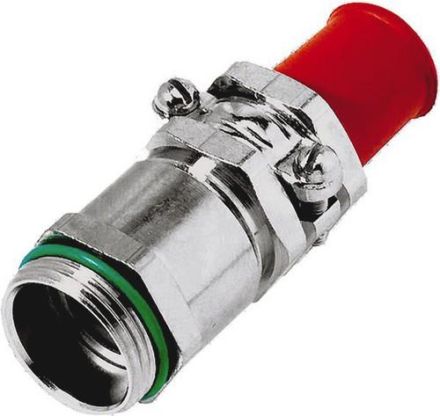

Lapp 52023620 SKINDICHT SR-SV PG 11/7 cable gland

In stock
SKU: 949408
€43.91
Into a basketIn the basketGo

Overview

Special cable gland with FKM anti-kink sleeve. Our specially developed FKM recipe shows no aging effect even with long-term exposure to temperatures of +165°C., Mechanical and turbine engineering, Power plant technology, Laboratories, For high temperatures, Resistant to oils, solvents, acids and chemicals, Seawater-resistant, High strain relief, Robust, PG connection thread,

Property Value
Wrench size: 20 mm
Metric thread size: 11
Suitable for cable diameters: 5.5 to 7 mm
Protection class (IP): IP65
Operating temperature: -15 to 165 °C
Halogen-free: no
Thread length: 6 mm
Thread type: PG
Color: other
Material: Metal
Impact-resistant: no
Material quality: Brass
Design: straight
With strain relief: yes
Surface protection: nickel-plated
Type of seal: Sealing ring
Bending protection: yes
Fiberglass reinforced: no
With lock nut: no
Flat cable gland: no
Explosion-tested version: no
For Ex zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no

Characteristics

Impact resistantNo
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter5.5 to 7mm
Wrench size20 mm
HABSKINDICHT SR-SV PG 11/7
Minimal order25 pcs
ManufacturerLapp
HAN52023620
GTIN4044773354942
VersionStraight
EMC versionNo
Operating temperature-15 to 165 °C
ColorOther
Thread typePG
Thread length6 mm
Halogen freeNo
With strain reliefYes
Surface protectionNickel-plated
IP protection)IP65
MaterialMetal
Material qualityBrass
