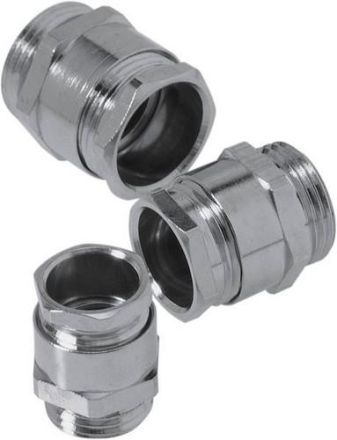

Lapp 52105004 SKINDICHT SVRE-M 40X1,5/36 cable gland

In stock
SKU: 949719
€14.55
Into a basketIn the basketGo

Overview

Cable gland made of brass with hexagon intermediate socket and variable cut-in sealing ring., With cut-in sealing ring for adaptation to different cable diameters, Fewer sizes in stock, Metric connection thread in accordance with DIN EN 60423, Basis for technical information DIN IEC 62444,

Property Value
Wrench size: 50 mm
Thread pitch: 1.5 mm
Nominal thread size metric: 40
Protection class (IP): IP54
Operating temperature: -20 to 80 °C
Halogen-free: no
Thread length: 8 mm
Thread type: metric
Color: other
Material: metal
Impact-resistant: no
Material quality: brass
Design: straight
With strain relief: yes
Surface protection: nickel-plated
Type of seal: cut-out sealing ring
Bending protection: no
Fiberglass reinforced: no
With lock nut: no
Flat cable gland: no
Explosion-tested version: no
For Ex-Zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: yes
Shielded: yes

Characteristics

Impact resistantNo
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedYes
Wrench size50 mm
HABSKINDICHT SVRE-M 40X1,5/36
Minimal order20 pcs
ManufacturerLapp
HAN52105004
GTIN4044773175882
VersionStraight
EMC versionYes
Operating temperature-20 to 80 °C
ColorOther
Thread typeMetric
Thread length8 mm
Thread1.5 mm
Halogen freeNo
With strain reliefYes
Surface protectionNickel-plated
IP protection)IP54
MaterialMetal
Material qualityBrass
