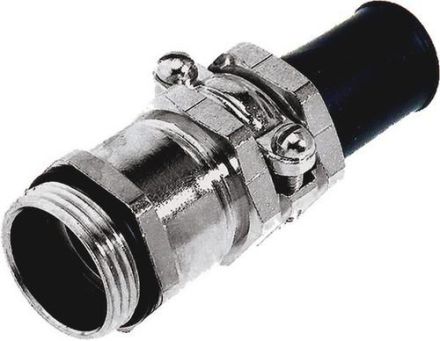

Lapp 52106580 SKINDICHT SR-M 40X1,5/36/33 cable gland

In stock
SKU: 950532
€51.45
Into a basketIn the basketGo

Overview

On electrical devices and machines that are moved during normal use, the connected cable must be protected against excessive bending in accordance with 0700-1., Hand-held devices, Portable equipment, Construction sites, Moving machine parts, Reliable bending and kink protection, High strain relief, Robust, For cables and lines with a large outer diameter, High protection class, Metric connecting thread in accordance with DIN EN 60423, Basis for technical information DIN IEC 62444,

Property Value
Wrench size: 50 mm
Thread pitch: 1.5 mm
Metric nominal thread size: 40
Suitable for cable diameters: 31 to 33 mm
Protection class (IP): IP65
Operating temperature: -20 to 80 °C
Halogen-free: no
Thread length: 8 mm
Thread type: metric
Color: other
Material: metal
Impact-resistant: no
Material quality: brass
Design: straight
With strain relief: yes
Surface protection: nickel-plated
Type of seal: Sealing ring
Bending protection: yes
Fiberglass reinforced: no
With lock nut: no
Flat cable gland: no
Explosion-tested version: no
For Ex zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no

Characteristics

Impact resistantNo
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter31 to 33 mm
Wrench size50 mm
HABSKINDICHT SR-M 40X1,5/36/33
Minimal orderPcs
ManufacturerLapp
HAN52106580
GTIN4044773170559
VersionStraight
EMC versionNo
Operating temperature-20 to 80 °C
ColorOther
Thread typeMetric
Thread length8 mm
Thread1.5 mm
Halogen freeNo
With strain reliefYes
Surface protectionNickel-plated
IP protection)IP65
MaterialMetal
Material qualityBrass
