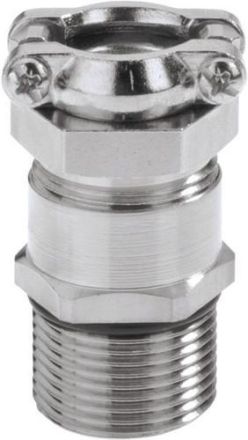

Lapp 52106815 SKINDICHT SKZ-M-XL 20X1,5/11 cable gland

In stock
SKU: 950439
€11.43
Into a basketIn the basketGo

Overview

Double-bar strain relief cable gland, for rough operating conditions, construction sites, plant construction, electric motor construction, with cut-in sealing ring for adaptation to different cable diameters, high strain relief, high mechanical load capacity, metric connection thread in accordance with DIN EN 60423, basis for technical information DIN IEC 62444,

Property Value
Wrench size: 22 mm
Thread pitch: 1.5 mm
Nominal thread size metric: 20
Protection class (IP): IP55
Operating temperature: -20 to 80 °C
Halogen-free: no
Thread length: 10 mm
Thread type: metric
Color: other
Material: metal
Impact-resistant: no
Material quality: brass
Design: straight
With strain relief: yes
Surface protection: nickel-plated
Type of seal: cut-out sealing ring
Bending protection: yes
Fiberglass reinforced: no
With lock nut: no
Flat cable gland: no
Explosion-tested version: no
For Ex zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no

Characteristics

Impact resistantNo
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedNo
Wrench size22 mm
HABSKINDICHT SKZ-M-XL 20X1,5/11
Minimal order50 pcs
ManufacturerLapp
HAN52106815
GTIN4044773169331
VersionStraight
EMC versionNo
Operating temperature-20 to 80 °C
ColorOther
Thread typeMetric
Thread length10 mm
Thread1.5 mm
Halogen freeNo
With strain reliefYes
Surface protectionNickel-plated
IP protection)IP55
MaterialMetal
Material qualityBrass
Lapp 52106815 SKINDICHT SKZ-M-XL 20X1,5/11 cable gland
Lapp 52106815 SKINDICHT SKZ-M-XL 20X1,5/11 cable gland
